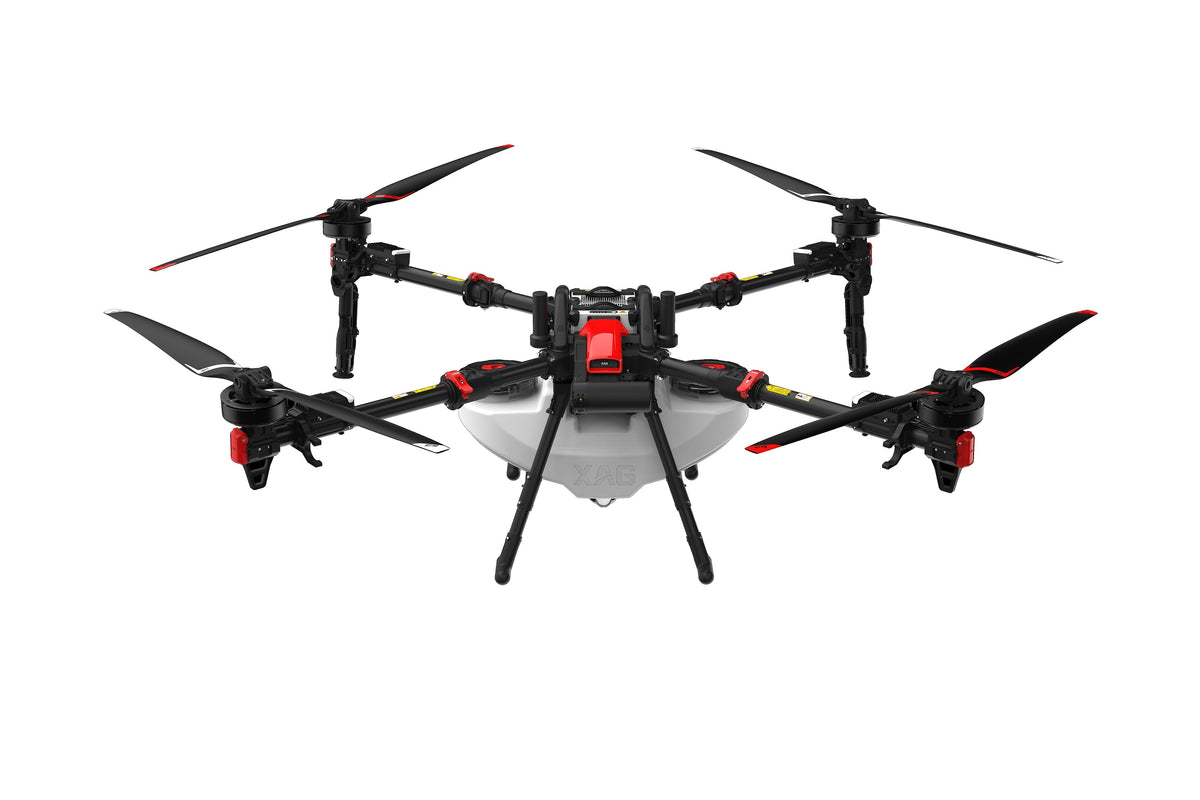

XAG P150 Max Swarm 160 (8B8C) Agricultural Spray Drone

XAG P150 Max Swarm 160 - 42 Gal Dual Drone Agricultural Spray System - 8 Batteries, 8 Chargers with PCK Kit

Configuration:

• System: Two synchronized P150 Max drones
• Effective Capacity: ~160 L (42 Gal) combined
• Included: 8 × B141050 Batteries, 8 × Chargers, Full PCK Kit
• Swarm Control: Advanced coordination, real-time optimization
• Payload per Drone: 80 kg each
• Performance: 20 m/s speed, extended operational window


The XAG P150 Max is the world's most powerful agricultural drone, delivering unmatched efficiency for large-scale operations. With an 80 kg payload, 80 L spray tank, 115 L spreading container, and a maximum flight speed of 20 m/s, it excels in autonomous spraying, spreading, field mapping, and material transport. Built with advanced intelligence, robust durability (IPX6K rating), and rapid charging, it's ideal for demanding field conditions across crops like corn, rice, cotton, citrus, and more.

Key Systems & Features

• XAG RevoSpray 5: 80 L smart liquid tank, up to 46 L/min flow rate (dual pumps), centrifugal nozzles with 60-500 μm droplets, 5-10 m spray width.
• XAG RevoCast 5: 115 L granule container, up to 300 kg/min spread rate, 5-9 m effective width, supports 1-10 mm dry granules.
• XAG RevoSling: 80 kg transport payload, secure hook with live weighing, A/B routes for efficient delivery.
• Onboard XAG RealTerra: Maps up to 20 ha per flight, HD imaging, auto obstacle detection, 3D terrain preview.
• SuperX 5 Ultra Control: 4D radar (1.5-100 m detection), map-free 3D flight, PPP-AR centimeter accuracy, AI assistance with AR overlays.
• B141050 Battery: 1050 Wh, 7-minute supercharge (with parallel kit), up to 1500 cycles.
• Durability: Foldable design, aluminum alloy frame, fully washable (IPX6K).

Full Technical Specifications

Aerial Platform

Propulsion & Spraying System

Spreading & Sensing Systems

Power & Control

Note: Performance may vary based on the environment. Always follow local regulations. Contact for demos or customization.
