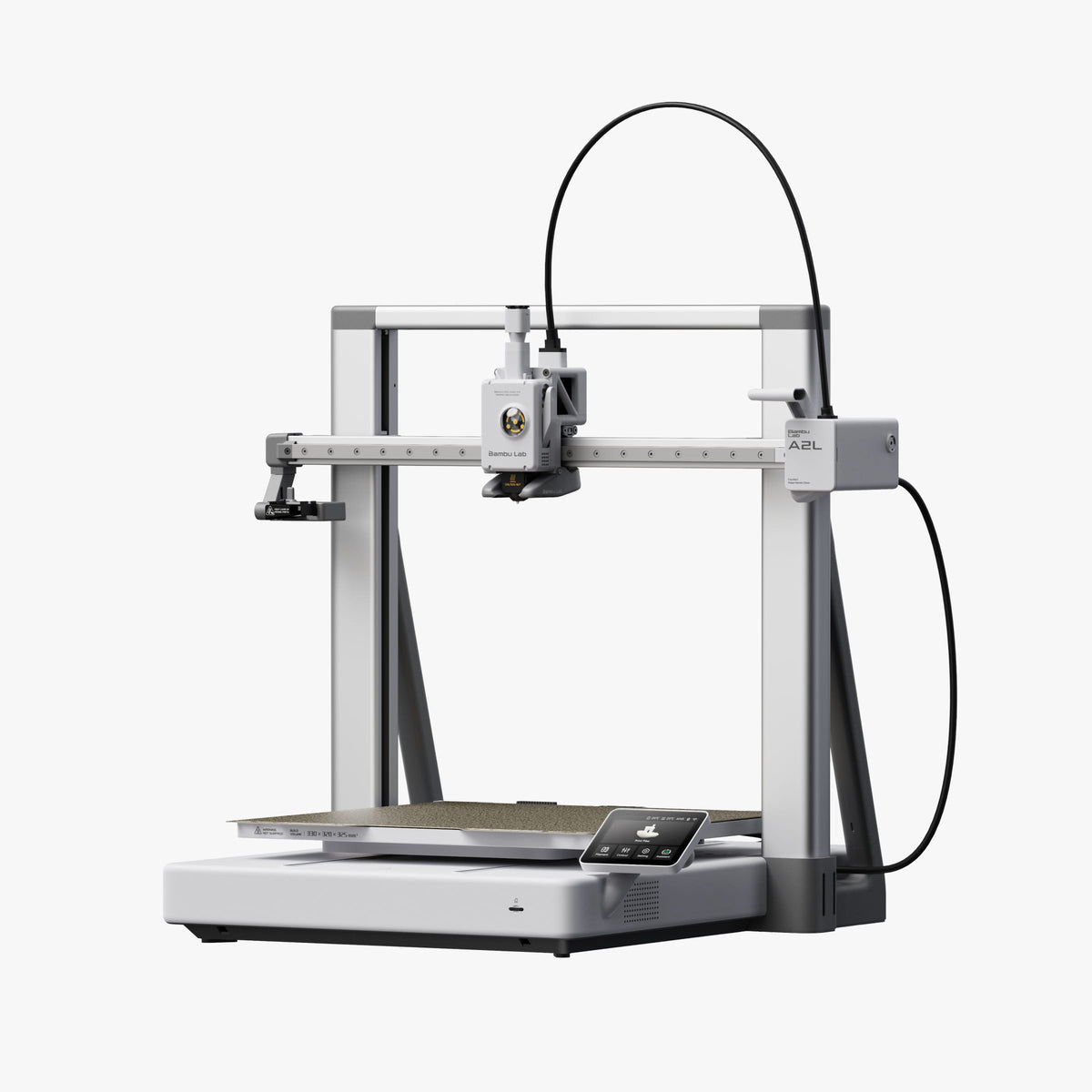

Large-Format Desktop 3D Printer

Bambu Lab A2L

A large-format, easy-to-use FDM 3D printer with a spacious 330 × 320 × 325 mm build volume, adaptive vibration compensation, closed-loop servo extrusion, intelligent monitoring and expandable multi-color printing capabilities.

330 × 320 × 325 mm

Large-format build volume

500 mm/s

Maximum toolhead speed

300°C

Maximum nozzle temperature

10 m/s²

Maximum toolhead acceleration

Why Choose A2L

Bigger Projects, Bambu-Level Simplicity

A2L expands the accessible A Series into large-format printing. Its 330 × 320 × 325 mm workspace provides 105% more build volume than a standard 256 mm-class printer while advanced motion control, automatic calibration and intelligent monitoring keep operation simple.

Extra-Large Build Volume

The 330 × 320 × 325 mm build area makes it possible to print large models, full-size props and larger production batches with fewer separate parts.

Adaptive Vibration Compensation

Multi-point adaptive vibration compensation responds to changing toolhead position and bed load to maintain stable print quality, even on tall and heavy models.

Closed-Loop Servo Extruder

A PMSM closed-loop servo extrusion system provides controlled filament delivery during high-speed printing and actively monitors extrusion behavior.

Intelligent Monitoring

Multiple sensors monitor filament runout, spool tangling, extrusion conditions and nozzle clumping to help prevent failed prints.

Expandable Multi-Color Printing

A2L supports AMS and AMS lite configurations and can be expanded for advanced multi-color printing with up to 19 filament colors.

Blade Cutting & Pen Plotting

A dedicated expansion interface supports the optional Blade Cutting Upgrade Kit for cutting compatible sheet materials and pen-based drawing workflows.

Extra-Large Build Volume

105% More Space for Bigger Ideas

With a 330 × 320 × 325 mm build volume, A2L provides substantially more printing space than standard 256 mm-class machines. Large cosplay parts, home décor, prototypes and production batches can be produced with fewer cuts, seams and assembly steps.

Designed for Stability

CoreXY-Level Stability in a Bed-Slinger

Larger and taller prints place greater demands on motion stability. A2L combines adaptive multi-point vibration compensation with two granular dampers integrated into the frame to reduce resonance and maintain clean surfaces throughout the print.

Closed-Loop Extrusion

Stable Material Flow at High Speed

The A2L uses a PMSM closed-loop servo motor in its extrusion system. It provides precise filament delivery while monitoring extrusion conditions in real time, helping maintain reliable material flow during demanding prints.

Multi-Color Printing

Expand Up to 19 Colors

A2L integrates with the Bambu Lab automatic material ecosystem. Compatible AMS configurations can expand the system for complex multi-color projects with support for up to 19 filament colors.

Modular Creation

Go Beyond 3D Printing

With the optional Blade Cutting Upgrade Kit, A2L can be transformed into a cutting and plotting platform. The system supports blade cutting for compatible materials such as stickers, paper, leather and fabric, as well as pen plotting for drawing projects.

Technical Specifications

Bambu Lab A2L

Build Area & Toolhead

Build Plate & Speed

Materials & Sensors

Dimensions & Operating Data
